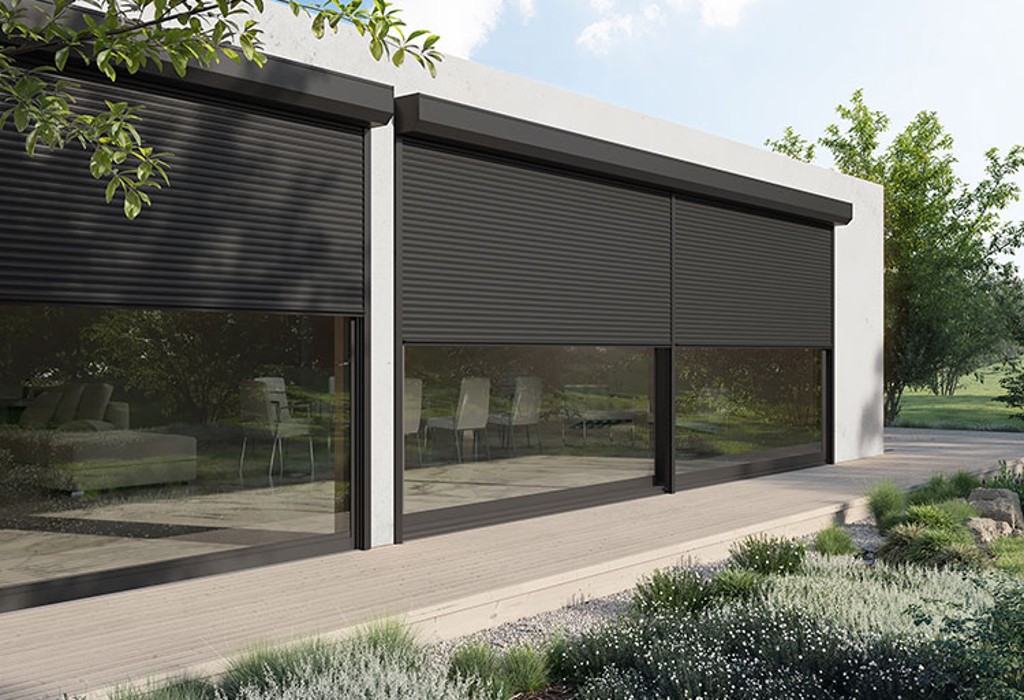

Front-mounted roller shutters

Ideally suited for a retrofit at a later date, thanks to a wide variety of colours and designs.

For increased safety, maximum comfort and ideal functionality

heroal front-mounted roller shutters stand out for enhanced security, maximum comfort and excellent functionality. Front-mounted roller shutters, also known as external roller shutters, are installed in front of the window. Therefore, they are perfectly suited for installation at a later date, within modernisation or renovation projects. Front-mounted roller shutters can be perfectly adapted to your installation situation, due to a wide range of design options and equipment.

What makes heroal front-mounted roller shutters stand out?

Installation at a later date

heroal front-mounted roller shutters are ideally suited for a retrofit. You can also have the front-mounted box integrated almost invisibly into your façade.

Small boxes

Front-mounted roller shutters from heroal ideally blend into the look of your house, thanks to their size. Even large roller shutters can be created with relatively small box sizes.

Individual designs

The panel boxes of heroal front-mounted roller shutters are available in different designs and sizes, and can be perfectly adapted to the look of your house. Also, a wide range of colours and designs is available to you, enabling you to design your front-mounted roller shutters to your preferences.

heroal front-mounted roller shutters at a glance

Many different applications
heroal RS 37
Higher level of burglary protection
heroal RS 37 RC 2
Higher level of burglary protection
heroal RS 37 RC 3
Tightly winding
heroal RS 41 SW
For extremely large element widths
heroal RS 52
Burglary resistance for large elements
heroal RS 55 SL
  heroal RS 37 heroal RS 37 RC 2 heroal RS 37 RC 3 heroal RS 41 SW heroal RS 52 heroal RS 55 SL
Box type rollformed front-mounted box security front-mounted box security front-mounted box rollformed front-mounted box rollformed front-mounted box GKSE
Box shape 20°, 45°, 90°, half round, quarter round 45° 45° 20°, 45°, 90°, half round 20°, 45°, 90°, half round, quarter round 45°
Height x depth [mm] 125 - 205 205 205 137 - 205 150 - 205 205 - 300
Burglary prevention [security level] Integrated anti-lift device RC 2 RC 3 Integrated anti-lift device Integrated anti-lift device Integrated anti-lift device
Max. size [mm] 3,000 x 3,500 2,095 x 2,350 1,920 x 2,140 3,500 x 3,500 4,500 x 3,100 5,000 x 4,000
Fly screen yes no no yes no no
Drive type motor, belt motor motor motor, belt motor motor
Smart home yes yes yes yes yes yes

Front-mounted roller shutters with integrated fly screen

Especially in the summer months, it is nice to have fresh air inside the house. Insects such as flies, mosquitoes and wasps often make it difficult to properly air out the interior. With a heroal retractable fly screen, which can be integrated invisibly into a front-mounted roller shutter box, heroal offers you flexible insect protection that is ready whenever you need it. During the winter months, the fly screen can disappear into the roller shutter box with a nearly silent mechanism. This eliminates the need to dismantle the stenter frames, and you can use the retractable fly screen again whenever you need.

More information about heroal fly screen solutions >

Construction and design options for heroal front-mounted roller shutters

You can match your heroal front-mounted roller shutters to your home's look. The small winding diameter of the roller shutters allow for the use of very narrow shutter boxes, which can be optimally integrated into the façade. You can choose between several shutter box looks and sizes and design them to match your taste. heroal offers a wide variety of colour options. Would you like your front-mounted roller shutters to be almost invisible in the façade? That is no problem with a flush-mounted shutter box, also known as a plaster-base roller shutter. Choose from a variety of shapes and looks for your heroal shutter box to find the best fit for your home.

Shutter boxes for front-mounted roller shutters

Shutter boxes for front-mounted roller shutters are available in a variety of shapes. That makes it easy to match your heroal front-mounted roller shutters to your home's look. You can view a selection of shutter box shapes here.

90 °
45°
20°
Half round
Quarter round

Increased security with heroal front-mounted roller shutters

heroal front-mounted roller shutters are divided into four security levels. The effectiveness of the anti-lift device and the material used for the front-mounted box and the roller shutter slat play a decisive role in determining this security level. Extruded stainless steel front-mounted boxes and roller shutter slats can increase the burglary protection level of your heroal roller shutter to RC 3. In combination with a heroal security window, you can even achieve resistance class RC 4.

Learn more

Security level 1:

  • anti-lift up to 750 N

Security level 2:

  • anti-lift up to 750 N
  • certification according to guideline TR 111 of the German Federal Association of Roller Shutters and Sun Protection

Security level 3:

  • integrated anti-lift up to 3,000 N
  • resistance class RC 3

Security level 4:

  • integrated anti-lift up to 6,000 N
  • resistance class RC 3

FAQ

  • Where can I buy heroal surface-mounted roller shutters?

    Would you like to integrate front-mounted roller shutters into your new building or retrofit them? Our heroal specialist partners will be happy to advise you in selecting the right front-mounted roller shutter and will install it professionally on your window. Our heroal specialist partners will also be available to you if anything comes up after your heroal front-mounted roller shutters are installed. Find a partner in your area from over 3,500 heroal professionals worldwide.

    Find a specialist partner now >

  • Are heroal surface-mounted roller shutters available with electric operation?

    Would you like to open and close your front-mounted roller shutters at the push of a button? heroal electric front-mounted roller shutters give you a wide range of control options - for more comfort and increased safety. Control your front-mounted roller shutters using a sunlight or temperature sensor to ensure the ideal indoor temperature. Are you still opening and closing your roller shutters manually with a shutter belt? You can easily retrofit a roller shutter drive into your heroal front-mounted roller shutters. Use our specialist partner search to find a specialist partner near you who can equip your front roller shutter with an electric drive.

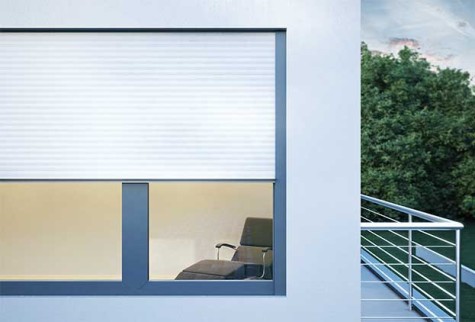

  • Can a surface-mounted roller shutter be plastered in invisibly?

    Would you like to retrofit a roller shutter but want the shutter box to be invisible? You can do just that with plastered front-mounted roller shutters with a flush-mounted shutter box. The shutter box blends seamlessly into the façade, making it virtually invisible. A wide variety of colours is available for all heroal roller shutters. For flush-mounted shutter boxes, you can choose from a broad selection of shapes and sizes. If you use a flush-mounted shutter box, the roller shutter is rolled up on the left-hand side and the convex side of the roller shutter curtain faces outwards.

Advantages of heroal front-mounted roller shutters at a glance

heroal front-mounted roller shutters are ideally suited for a retrofit at a later date. They enhance the energy efficiency and burglary protection of your house. Thanks to the wide variety of colours and designs and the small box sizes, heroal front-mounted roller shutters harmoniously blend into the look of your house. Use the heroal specialist partner search to arrange a meeting with a specialist partner in your area now, and get all the information you need.

  • ideally suited for retrofits at a later date
  • high energy efficiency
  • can be ideally adapted to the look of your home, thanks to wide range of colours and various panel box designs
  • low winding diameter for small box sizes and an unobtrusive integration
  • burglary protection including RC 3
